Automatic Moving V-Cut PCB Separator Motorized SMT Process CE Approved

  • 1
  • 2

Brand Name : Chuangwei pcb separator

Model Number : CWV-1A600 pcb separator

Certification : CE and certificate of registion

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T L/C paypal west union credit card

Supply Ability : 300 sets/ month

Delivery Time : 3 days after receive the payment

Packaging Details : plywood case

Function : Motorized

Delivery : 1-3 days after payment receipt

Size : could be customized

MOQ : 1 set

warranty : free for one year

cutting length : 460mm

Contact Now

Blade Automatic Moving PCB Separator After SMT Process CE Approved



1 . blade move automatically and separate both small and large PCBs fast and economically
2 . specially for resin substrate PCB with pre-scored V groove
3 . safety use and easy operation




Features for pcb separator :



1 . Separate pre-scored PCB assembly without stress on either PCB or component

2 . One touch programming of cut length with digital display

3 . Separating speed is adjusted by a rotary knob

4 . Handle Intermittent scoring or cut-outs

5 , Board with projected component can be cut precisely

6 . Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable

7 . Optional PCB conveyor belt to remove finished board

8 . Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out







Specifications:



Model:

CWV-1A600

Size:

1080*860*660mm

Machine Weight:

120Kg

Minimize thickness:

0.6-3.5mm

Minimize Speed:

100/200/300/500mm/s

The Longest Minimize:

600mm









































Competitive Advantage:

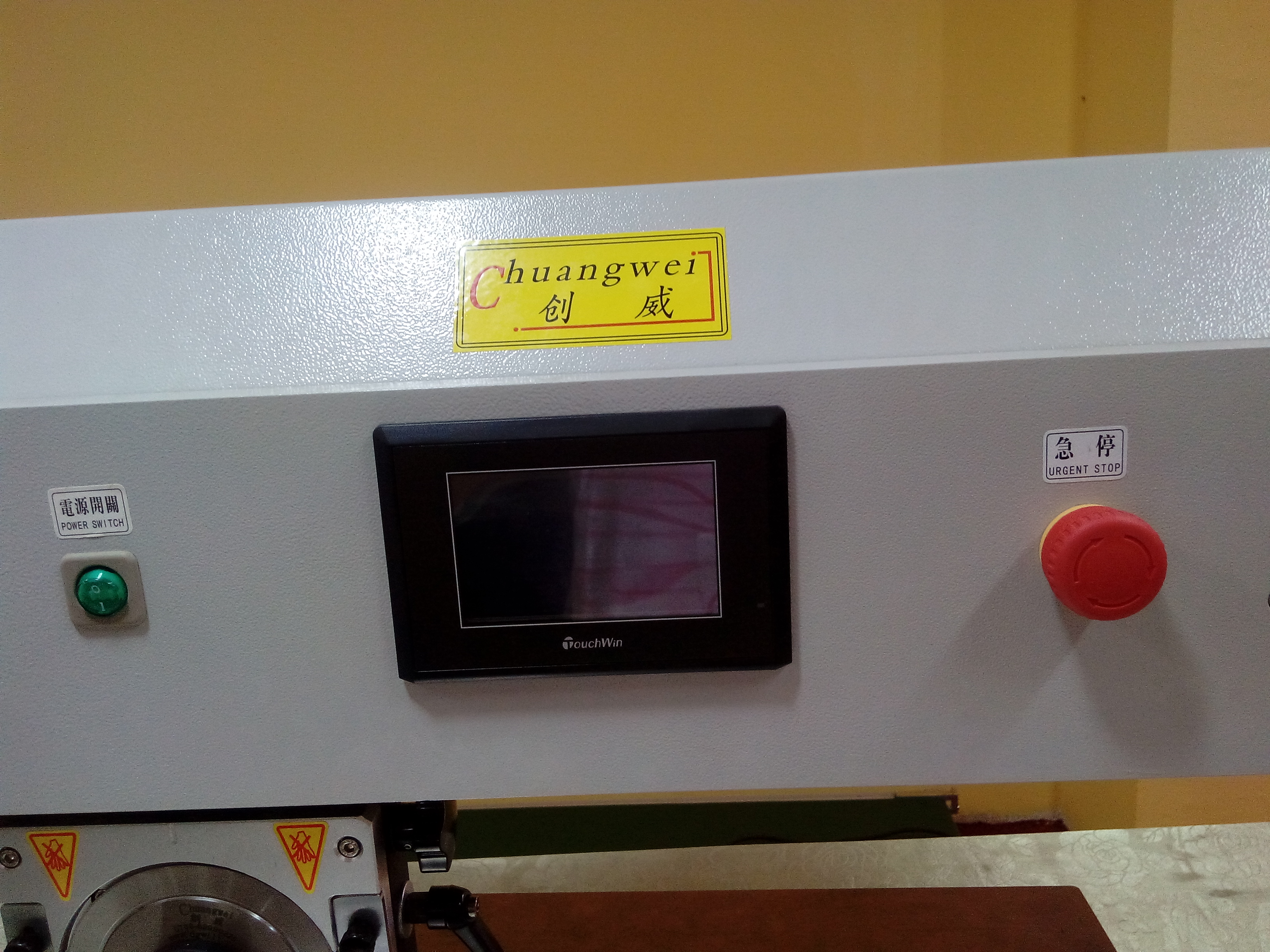

1. LCD display: You could adjust the blade moving trip according to your PCB length.
   For example, your pcb is 200mm, then you could setup 200mm moving trip.
2. Sensor: it protect our hands from depanelizing.
   When you put your hands near the blades, the machine stop working even though the operator step on pedal switch.
   It is very safe.
3. It has 4 speed positions to control cutting speed
4. We used Japanese High Speed Steel to make the blades, and baldes should be re-sharpened 2-3 times.

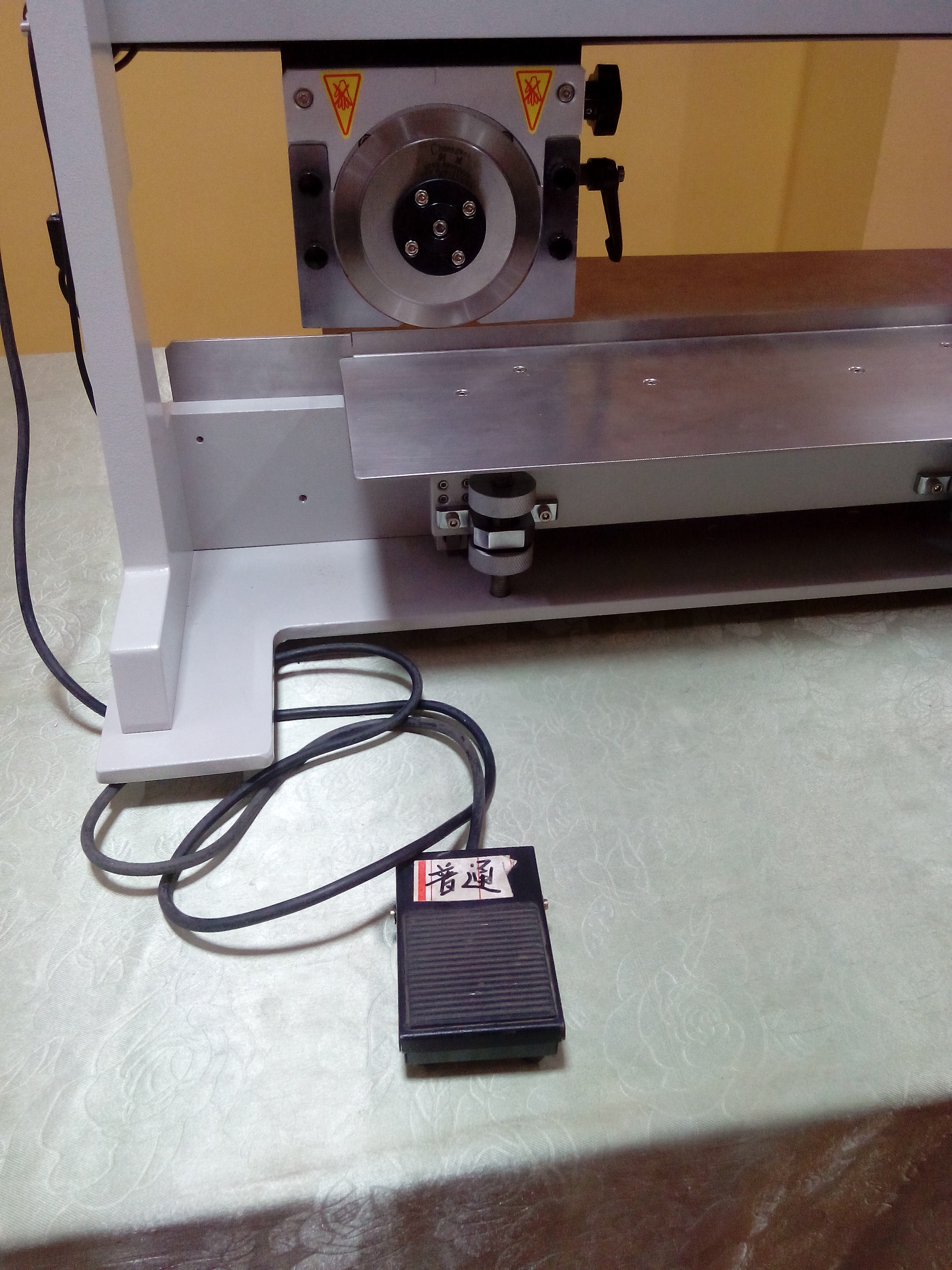

Automatic Moving V-Cut PCB Separator Motorized SMT Process CE Approved

Automatic Moving V-Cut PCB Separator Motorized SMT Process CE Approved
