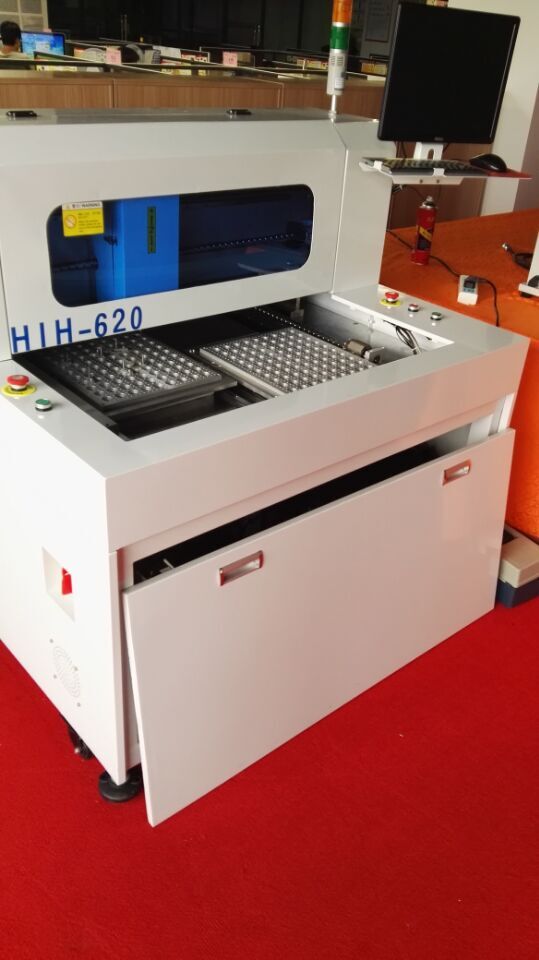

PCB Router Machine with 400W Robust Frame 322 * 322mm,PCB Routing Machine

Brand Name : Chuangwei

Model Number : CW-F01

Certification : CE ISO9001

Place of Origin : Dongguan China

MOQ : 1 Set

Payment Terms : T/T, L/C, Western Union, MoneyGram,paypal

Supply Ability : 300 sets/month

Delivery Time : 1-3 days after deposit receive

Packaging Details : each set be packed in plywood case

Price : Negotiable

Max Cutting Speed : 100mm/s

Max PCB Size : 322*322mm

Power(W) : 400W

Axis Precision : 0.001mm

Warranty : 1 year

PCB Loading : Manual

Contact Now

PCB Router Machine with 400W Robust Frame 322 * 322mm,PCB Routing Machine

Performance Parameters





Positioning repeatability

0.001mm

Axis working area(max)

 680mm*360mm*50mm



Work station

Overall

Dimensions(W*D*H)

1220mm*1450mm*1420mm

Weight

550KG

Height offset

60~110mm



Manipulator

Motor type

 JiaBao series

Work station

 standard,specialization

PCB loading/unloading

manual

PCB size (max)

322mm*322mm

PCB thick (max)

 5mm



Fixturing

Rigidity fixturing

standard

Fixturing fixation

machinery



Spindle Motor

Power

 400W

Spindle

50000rpm/min

Protect

self/wind cooling

Change cutter

 Specialization



Routing capability

Cutting speed(max.)

 100mm/s

Driving speed(max.)

3000mm/s

Precision of cutting

0.01mm



Vacuum System

Vacuum power

2.2KW AC 380V



Vacuum plumb



Utilities

Power

2.2KW AC380V


Air supply

2~5KG/cm2



Hardware:



SPINDLE Morning Star spindle and inverter



CCD

Sony 520 line industrial cameras

LENS

Computar  EX2C

Screw

TBI Precision ground ball screw imports

Guide

HIWIN widening Imported linear guide rail

MOTOR

JiaBao LCF Series

I/O CONTRONL CARD

HFC  PCI-9074

DRIVER CONTRONL CARD

HFC  PCI-9074

I/O CARD

PCI-9074-64pcs/-38pcs

Static cleanup

STATIC-ST401A Series

Computer

RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G

Machine interface

AOC LCD17",Logitech mouse



CW-F01 Software:



Control system

Windows XP Professional  (Service3,v.3244)

Operation GUI

Chinese Windows XP

Program edit

Inline

Vision system

CCD AOTU offset

Control system

F 1.0.2 version
