High Precision PCB Router Machine,PWB/PCBA Depaneling Machine with Spindle

Name: High Precision PCB Router MachinePWBPCBA Depaneling Machine with Spindle
Brand: ChuangWei
Price: 1 USD

Buy cheap High Precision PCB Router Machine,PWB/PCBA Depaneling Machine with Spindle product

Brand Name : ChuangWei

Model Number : CW-F01

Certification : CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Place of Origin : Dongguan City, Guangdong province,China

MOQ : 1 Set

Payment Terms : T/T ,L/C, Paypal

Supply Ability : 30 sets/year

Delivery Time : within 7 days after payment receipt.

Packaging Details : seaworthy plywood case,safe, no need to fumigated

Price : Negotiable

Dimensions(W*D*H) : 1220mm*1450mm*1420mm

Weight : 550kgs

Height offset : 60~110mm

Positioning repeatability : 0.001mm

Axis working area(max) : 680mm*360mm*50mm

Spindle : 50000rpm/min

Protect : self/wind cooling

Change cutter : Specialization

Precision of cutting : 0.01mm

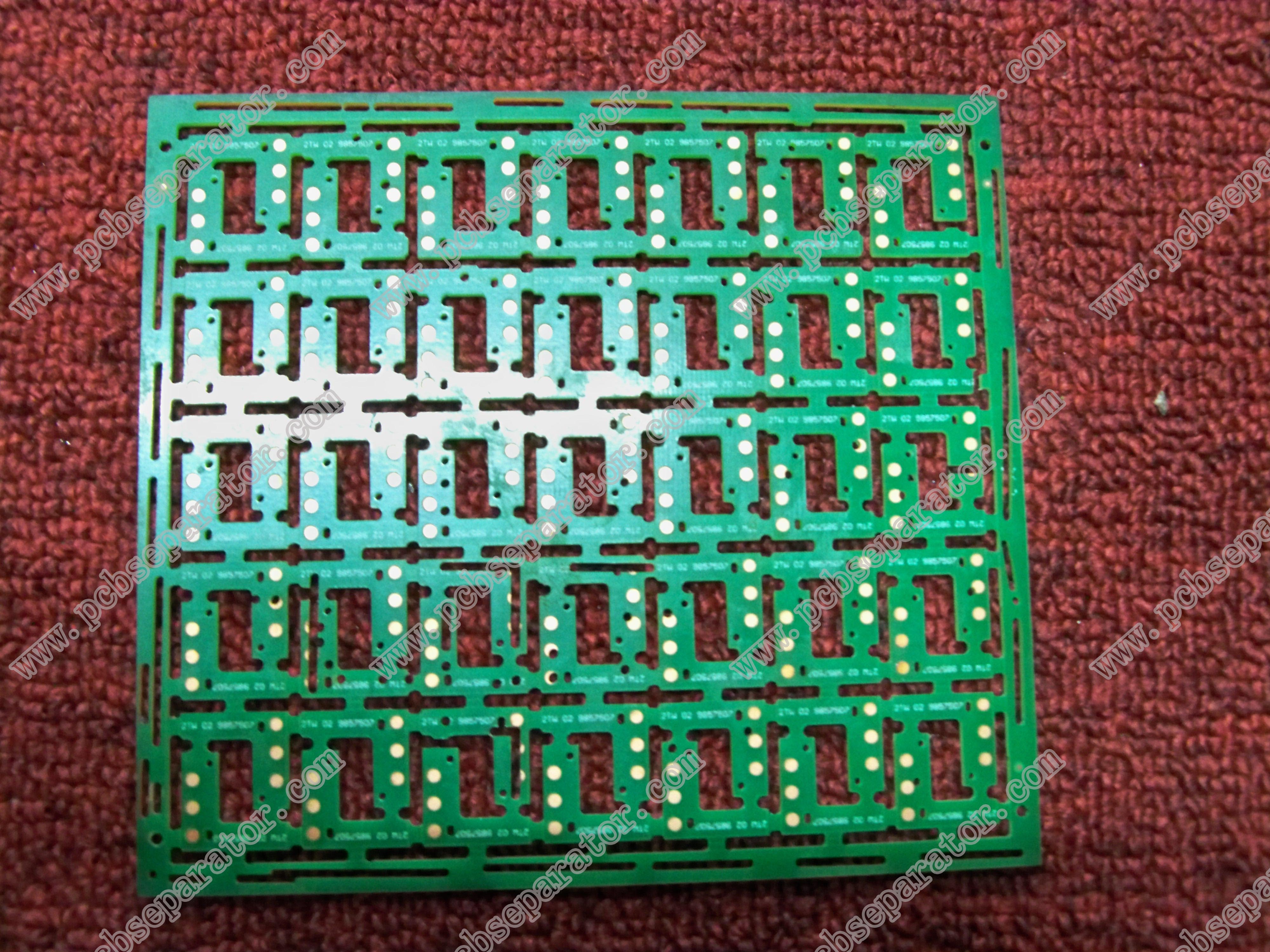

PCB separator : PCB separator

Contact Now

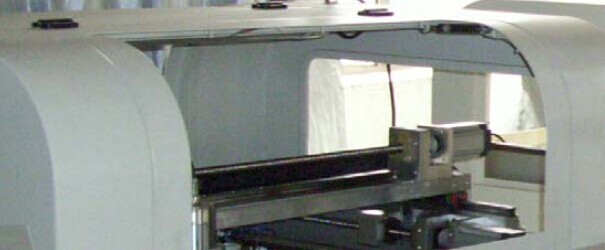

High Precision PCB Router Machine,PWB/PCBA Depaneling Machine with Spindle

1. Machine Parts List

I. Hardware
SPINDLE	Morning Star spindle and inverter
CCD	Sony 520 line industrial cameras
LENS	Computar EX2C
Screw	TBI Precision ground ball screw imports
Guide	HIWIN widening Imported linear guide rail
MOTOR	JiaBao LCF Series
I/O CONTRONL CARD	HFC PCI-9074
DRIVER CONTRONL CARD	HFC PCI-9074
I/O CARD	PCI-9074-64pcs/-38pcs
Static cleanup	STATIC-ST401A Series
Computer	RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)
Machine interface	AOC LCD17",Logitech mouse
2. software
Control system	Windows XP Professional (Service3,v.3244)
Operation GUI	Chinese Windows XP
Program edit	Inline
Vision system	CCD AOTU offset
Control system	F 1.0.2 version

2.Performance Parameters

Overall
Dimensions(WDH)	1220mm1450mm1420mm
Weight	550KG
Height offset	60~110mm
Manipulator
Motor type	JiaBao series
Positioning repeatability	0.001mm
Axis working area(max)	680mm360mm50mm
Work station
PCB fixation	standard,specialization
PCB loading/unloading	manual
PCB size (max)	322mm*322mm
PCB thick (max)	5mm
Fixturing
Rigidity fixturing	standard
Fixturing fixation	machinery
Spindle Motor
Power	400W
Spindle	50000rpm/min
Protect	self/wind cooling
Change cutter	Specialization
Routing capability
Cutting speed(max.)	100mm/s
Driving speed(max.)	3000mm/s
Precision of cutting	0.01mm
Vacuum System
Vacuum power	2.2KW AC 380V
Vacuum	plumb
Utilities
Power	2.2KW AC380V
Air supply	2~5KG/cm2
Programming
Program edit	Inline
Function edit	Line,arc,circula,U-curve
Program storage	HDD
Vision system	SONE colour CCD
milling cutter offset	AUTO
Vacuum setup	AUTO
Operation Monitors
Iindicator	Iindicator Machine state
tool check	Automatic detection tool life, the use of time testing
Motor protect	Have overheating, overload, low voltage protection function
motor over loading check	Have Overload, the line is normal, low voltage protection function
Tool usable time	Automatic detection tool life,
Data statistic	Separate board model, separating count, diverse counting methods
Error record	Software automatically records all alarms memory of machines
III. Accuracy
Axis precision	0.001mm
Cutting precision	0.1mm
IV. Safety
Working area protect	With four sealed protection
Door sensor	Front and rear safety door micro-switch sensor (optional)
Exigency stop button

3.Function Description

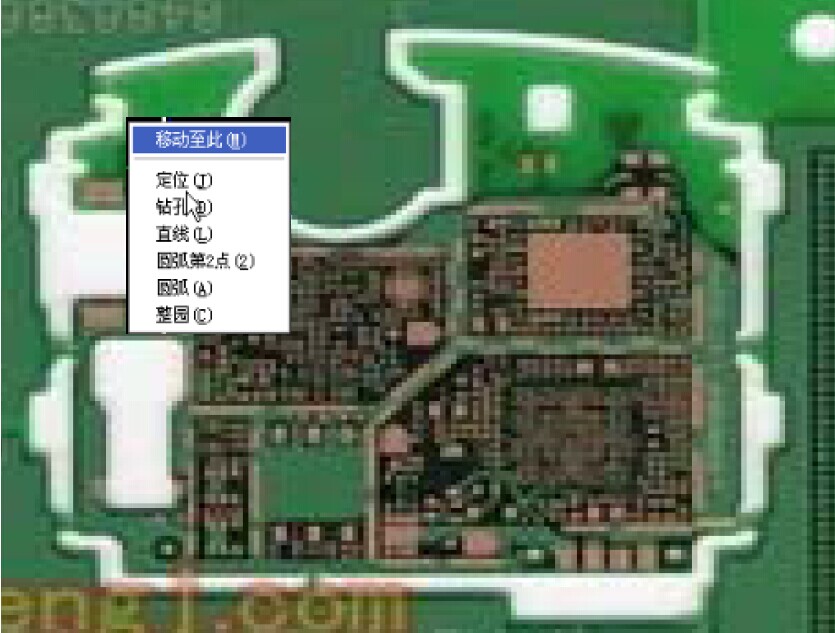

1) X10 zoom-in image makes programming easier&increase the accuracy of point setting
